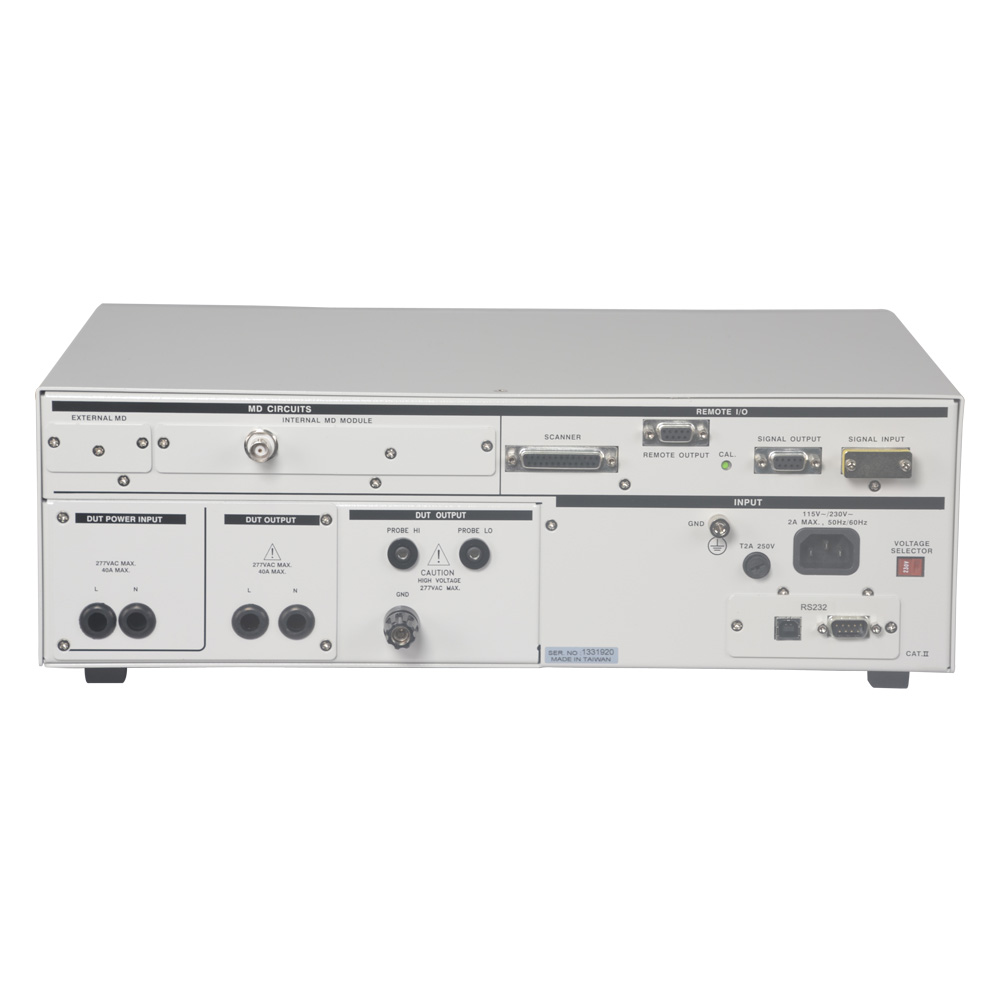

INPUT

Voltage

115/230 VAC ± 15%

Frequency

50/60 Hz ± 5%

Fuse

2A Slow-Blo 250V AC

Line condition

Power Switch

Reverse polarity switch for normal   condition (on / off / auto setting)

Neutral Switch

Neutral switch on/off selection for   single fault condition

Ground Switch

Ground switch on/off selection for class   I single fault condition

Probe Setting

Surface to Surface (PH- PL)

Surface to Line(PH - L)

Ground to Line (G - L)

Ground to Neutral (G - N)

Auto Function (G - N & G - L)

SETTING

Touch Current High Limit (RMS)

Range:

0.0uA~ 999.9uA/ 1000uA~5999uA/   6.00mA~20.00mA

Resolution:

0.1uA/1uA/0.01mA

Touch Current Low Limit (RMS)

Range:

0.0-999.9 uA

Resolution:

0.1uA

Touch Current High Limit (Peak)

Range:

0.0uA - 999.9uA/ 1000uA - 9999uA/ 10.0mA   - 30.0mA

Resolution:

0.1uA/1uA/0.1mA

Touch Current Low Limit (Peak)

Range:

0.0-999.9 uA

Resolution:

0.1uA

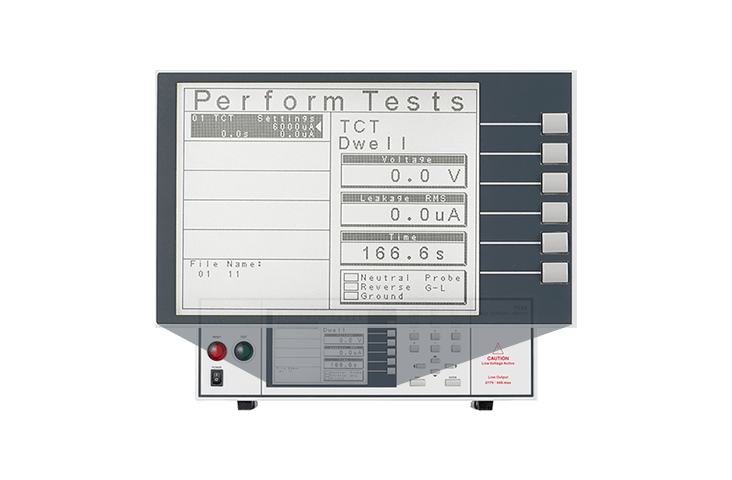

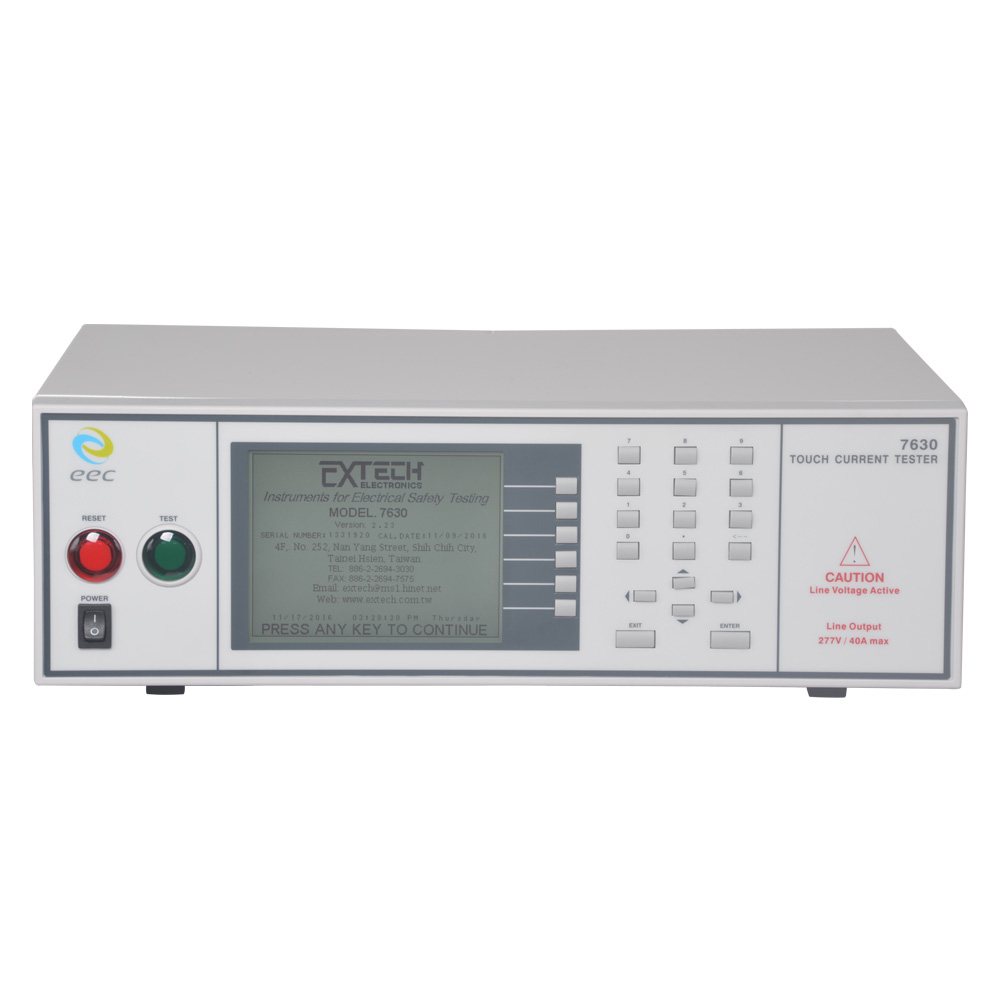

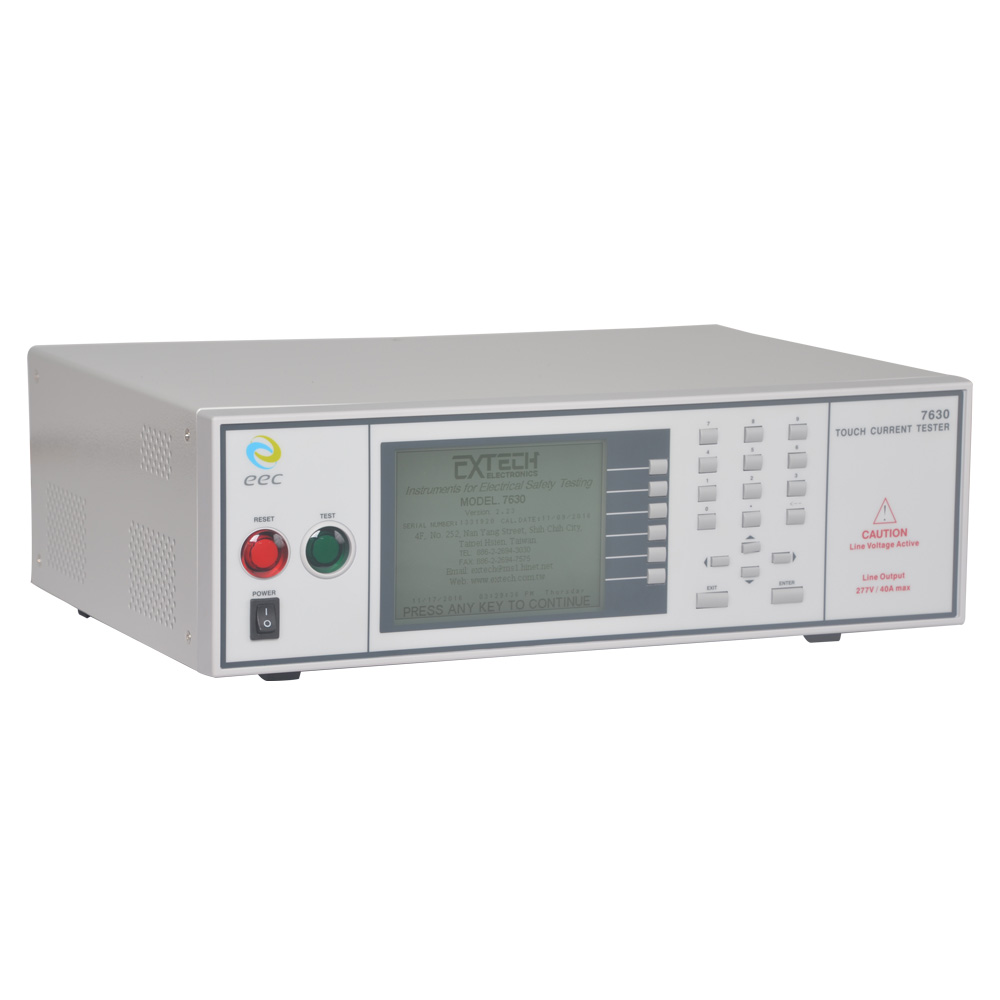

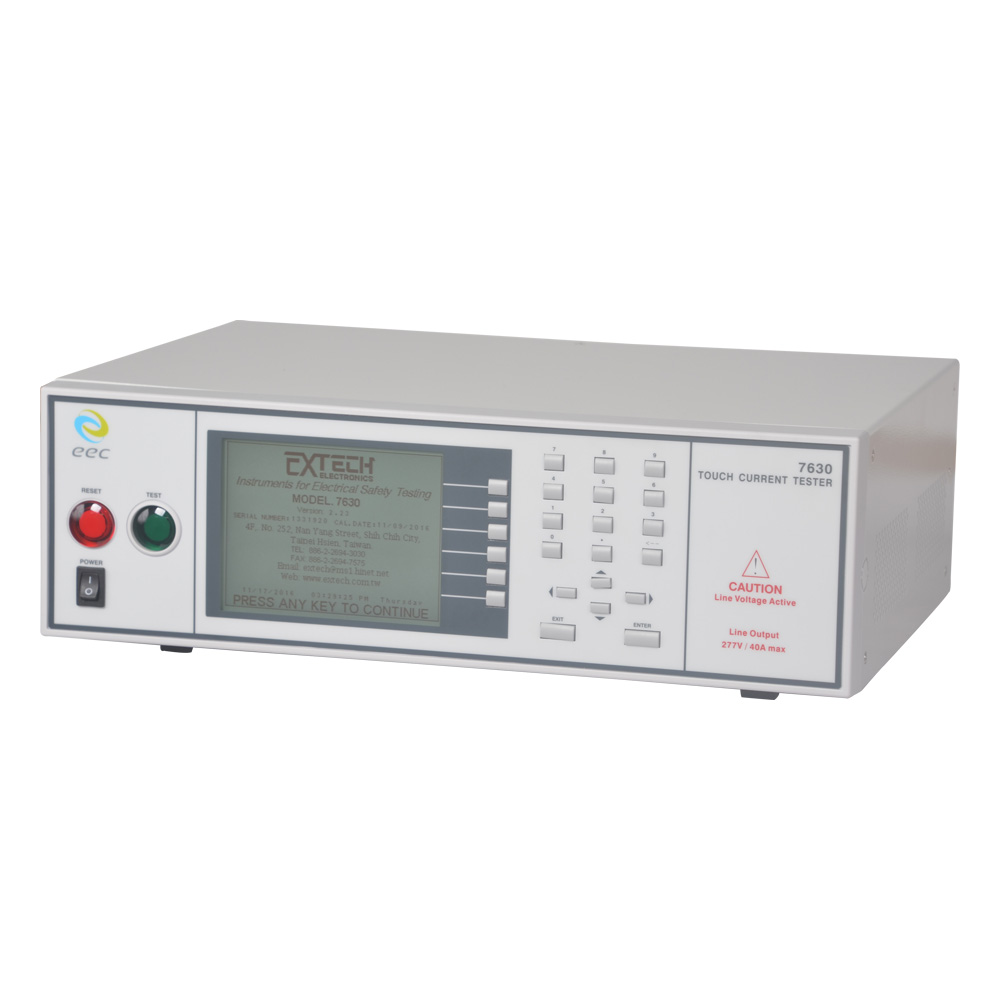

DISPLAY

Touch Current Display (RMS)

Range 1

0.0uA~ 999.9uA, frequency DC - 1MHz

Resolution

0.1uA

Accuracy

DC : ±2% of reading + 3counts
  15Hz < f<100KHz : ±2% of reading + 3counts
  100KHz < f < 1MHZ : ±5% of reading (10.0uA - 999.9uA)

Range 2

1000uA~8500uA, frequency DC - 1MHz

Resolution

1uA

Accuracy

DC : ±2% of reading + 3counts
  15Hz < f<100KHZ : ±2% of reading + 3counts
  100KHz < f<1MHZ : ±5% of reading (10uA - 8500uA)

Range 3

8.00mA~20.00mA, frequency DC - 1MHz

Resolution

0.01mA

Accuracy

DC : ±2% of reading + 3counts
  15Hz < f < 1MHz : ±5% of reading (0.01mA -20.00mA )

Touch Current Display (Peak)

Range 1

0.0uA~ 999.9uA, frequency DC - 1MHz

Resolution

0.1uA

Accuracy

DC : ±2% of reading +2uA
  15Hz < f<1MHZ : ±10% of reading +2uA

Range 2

1000uA ~ 8500uA, frequency DC - 1MHz

Resolution

1uA

Accuracy

DC : ±2% of reading +2counts
  15Hz < f<1MHz : ±10% of reading +2counts

Range 3

8.0mA ~ 30.0mA, frequency DC - 100KHz

Resolution

0.01mA

Accuracy

DC : ±2% of reading +2counts
  15Hz < f < 100KHz : ±10% of reading +2counts

Measuring Device Module

MD1

IEC60990 Fig4 U2, IEC 60950-1,   IEC60335-1, IEC60598-1, IEC60065, IEC61010

IEC60990 Fig4 U1, IEC60065

MD2

IEC60990 Fig5 U3, IEC60598-1

IEC60990 Fig5 U1

MD3

IEC 60601-1

MD4

UL544NP, UL484 , UL923, UL471, UL867,   UL697

MD5

UL544P

MD6

UL1563

MD7

IEC60950, IEC61010-1 FigA.2 (2K ohm) for   RUN Test MD Circuit.

External MD

Basic measuring element 1k ohm

MD Voltage Limit

70Vdc

Leakage Current Offset

Range:

0 - 999.9uA

Resolution:

0.1uA

DUT POWER

AC Voltage

0.0-277.0V

AC Current

40Arms max continuous

Over Current Protection

50Arms, Response Time < 3 sec /   250Apeak Response Time<10u sec

AC Voltage High/Low Limit

Range:

0.0-277.0V

Resolution:

0.1V/step

AC Voltage Display

Range:

0.0 - 277.0 V

Resolution:

0.1 volt / step

Accuracy:

±(1.5% of reading + 2 counts) , 30.0 -   277.0VAC

Delay time setting

Range:

0.2 !V 999.9 seconds

Resolution:

0.1 second

Timer display

Range:

0.0 !V 999.9 seconds

Resolution:

0.1 second

Accuracy:

± (0.1% of reading + 0.05 seconds)

GENERAL

PLC Remote Control

Input - Test, Reset, Interlock &   Recall File 1 through10

Output - Pass, Fail, Test-in-Process,   Start-Out, Reset-Out

Scanner Control

It is applied to control Matrix Scanner   (Model 7006)

Memory

50 memories , 30steps per each memory .   Max. Result Display 900 data (30 memories x 30 steps)

Auto Reverse Function

AUTO Reverse ON / OFF parameter setting   selection
  Automatic Reverse polarity switch for normal condition in one step setting   menu.
  Only display maximum leakage current value.
